Full Viking FDW301 Dishwasher Specs
14
place settings
| Key Specs | |
|---|---|
| Number of place settings | 14 |
| Performance | |
| ENERGY STAR rating | 214 kWh/year ($26 per year) |
| Eco features | Fast Wash/Eco Wash |
| Dishwashing System | |
| Cycle options | Half Load |

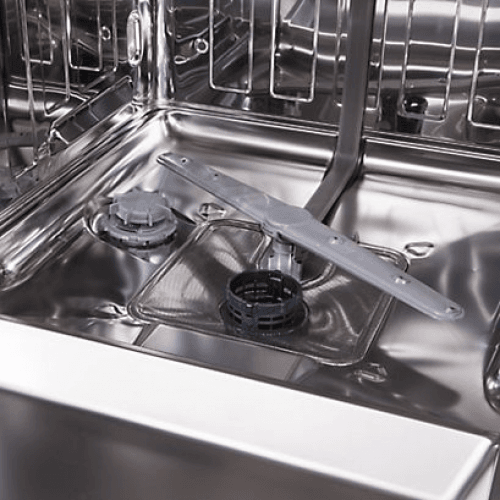

| Wash Arms | 3 |
| Built-in water filter | Three-stage |
| Drying features | Turbo fan dry |
| Sanitizing wash | NSF-certified |
| Sensors | Turbidity |
| Variable spray pressure |  |
| Max. water heater temp F | 120 |
| Control Panel | |
| Top controls | |
| Control panel features | LCD screen |
| Shortest cycle time | 34 minutes (Fast Wash) |
| Preset programs | Fast Wash/Eco Wash, Light/China, Pots/Pans, Pots/Pans Plus, Rinse/Hold, Normal Wash |
| Programmable start time | 9.5 (30-minute to 9.5-hour delay) |

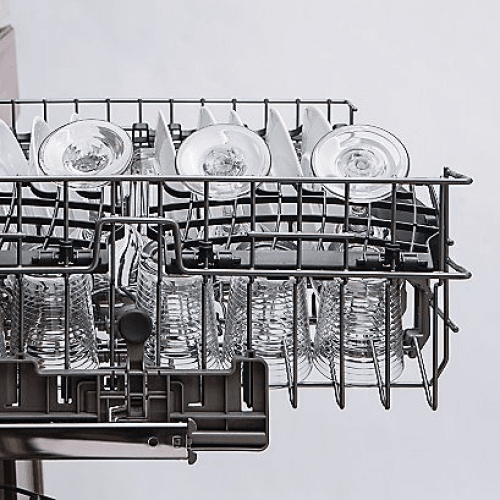

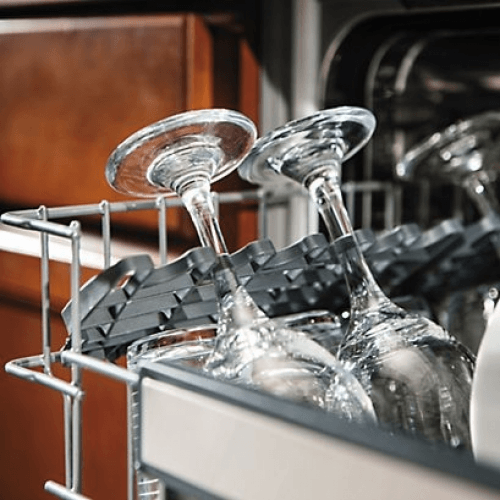

| Racks | |
| Lower Rack details | Six foldable tines (Split) |
| Adjustable upper rack | |
| 3rd Rack details | Smart Size |
| Silverware Basket details | Sliding |
| Physical Specs | |
| Inlet hose length | 2.95in. |
| Load Sensor | Turbidity |
| Available colors | Custom panel-ready, or you may purchase Viking door panels that are available in Silver (Stainless steel), Black, White, Apple Red, Burgundy, Cobalt Blue, and Graphite Gray. |
| Door Insulation | Three layers (Bitumen, cotton and full side walls) |
| Door Style | Custom panel-ready |
| Finish | Custom panel-ready |
| Maximum Width (inches) | 24 |
| Maximum Height (inches) | 36 |
| Maximum Depth (inches) | 24 |
| Weight lbs with package | 97 |
| Width (inches) | 23.562 |
| Depth (inches) | 22.187 |
| Width (mm) | 598.5 |
| Height (mm) | 911.2 |
| Depth (mm) | 563.5 |
| Height (inches) | 35.875 |
| Tub material | Stainless steel |
| Other Specs & Features | |
| Main category | Panel-ready dishwasher |
| SERIES | 300 |
| Sanitized indicator light | |
| Release day | 1 |
| Release month | 7 |
| Release year | 2015 |
| Interior light | LED |
| Special | Floor Indicator Light |
| Concealed heating element | |
| Voltage | 115 |
| Warranty | 1 year (1 year with parts and labor, 5 years on certain components, and a lifetime warranty on the door liner and tub) |
| Watts | 1240 (Water heater) |
| Indicator lights | |
Description:
The FDW301 can be outfitted with Viking door panels, which are available in Silver (Stainless steel), Black, White, Apple Red, Burgundy, Cobalt Blue, and Graphite Gray, while it might consume less power, as it seizes a well-below-average 214 kWh/year Energy Star score. Also, it illuminates its interior with LED lights, a feature that is quite-rare among panel-ready dishwashers.
