Complete DeWALT DCD797D2 Drill Specs (USA Version)
128.8
in-lbs
Peak torque
20
V
Battery
Our Score: 90%
Are You Sure It Is Your Best Choice? Check These:
| Performance | |
|---|---|
| Speed settings | 3 (programmable) |

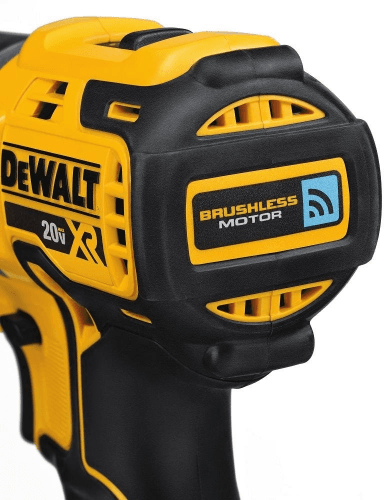

| Motor type | Brushless |
| Motor voltage | 20 V |
| Drill-Specific Specs | |
| Length (inches) | 7.4 |
| Peak Torque | 128.8 In-lbs |
| Unit Watts Out (UWO) | 460 |
| Battery Specs | |
| Battery | Lithium Ion (also called DCB XR Brushless Batteries) |
| Battery Power | 2000 |
| Battery charging time | 35 minutes |
| Battery voltage | 20 |
| Other Specs & Features | |
| Sequel to | DCD796 |
| Model Variants | DeWalt DCD797B (bare tool variant) |

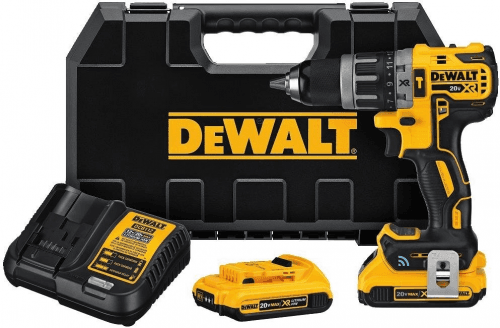

| Included Accessories | Kit box, Charger, 2 batteries |
| Available colors | Yellow with Black Accents |
| Warranty | 3 years |
| Handle Type | Ergonomic comfort grip |

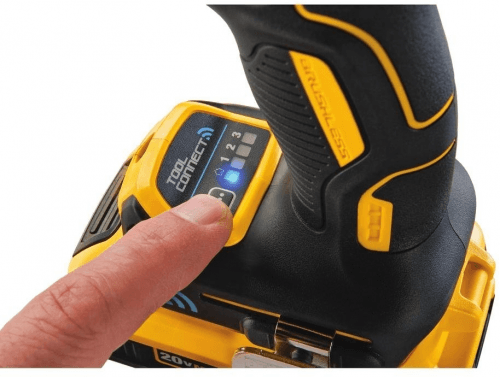

| Special | Compatible with Tool Connect Inventory Management app (a software tool designed to monitor connected tools), Bluetooth connectivity (for pairing up with Tool Connect-enabled devices within a 100-foot radius) |
| Manufacture product ID | DCD797D2 |
| UPC code | 885911526142 |
| Indicator lights | Tool Connect app (customizable), Fuel gauge (found on battery) |
| Indicator lights | Tool Connect app (customizable), Fuel gauge (found on battery) |
| Warranty | 3 years |
| Claimed qualities | DeWALT claims that the 20V brushless motor has up to 75% longer runtime than 18V NiCad brushed motors. |
| Special | Compatible with Tool Connect Inventory Management app (a software tool designed to monitor connected tools), Bluetooth connectivity (for pairing up with Tool Connect-enabled devices within a 100-foot radius) |
| UPC code | 885911526142 |
| Security features | Set "disable when out of range" alerts to help deter unauthorized use or theft, tool tracking |
| Model Variants | DeWalt DCD797B (bare tool variant) |
| Main category | Cordless hammer drill |
| Release year | 2017 |
| Release month | 06 |
| Release day | 15 |
| Handle Type | Ergonomic comfort grip |
Description:
This cordless drill's 20v brushless motor is supposed to provide more runtime than 18V NiCad brushed motors, but it has a lower-than-average torque at only 128.8 in-lbs and only 13 clutch settings.
Also known as: DeWALT 20V XR Hammer Drill.
