Full Milwaukee 2403-22 Drill Specs
350
in-lbs
Peak torque
12
V
Battery
1700
RPM
HIGH (no-load)
| Performance | |
|---|---|
| Motor type | Brushless |
| Motor voltage | 12 V |
| Drill-Specific Specs | |
| Length (inches) | 7.75 |
| Peak Torque | 350 In-lbs |
| Batteries included | 2 for the 2403-22 variant (one 2000mAh battery and a 4000mAh extended capacity battery) |
| Chuck Type | Single-sleeve ratcheting |
| Chuck size | 1/2in. |
| High no-load RPM | 1700 |
| Low no-load RPM | 450 |
| All-metal parts | Chuck |
| Battery Specs | |
| Battery Power | 2000mAh (An extra 4000mAh battery pack is also part of the 2403-22 bundle) |
| Battery voltage | 12 |
| Batteries included | 2 for the 2403-22 variant (one 2000mAh battery and a 4000mAh extended capacity battery) |
| Charger details | 48-59-2401 |
| Physical Specs | |
| Width (inches) | 3.7 |
| Height (inches) | 13.8 |
| Width (mm) | 94 |
| Height (mm) | 350.5 |
| Other Specs & Features | |
| Auto shut-off | Redlink Plus |
| Model Variants | 2403-20 |
| SERIES | M12 Fuel |

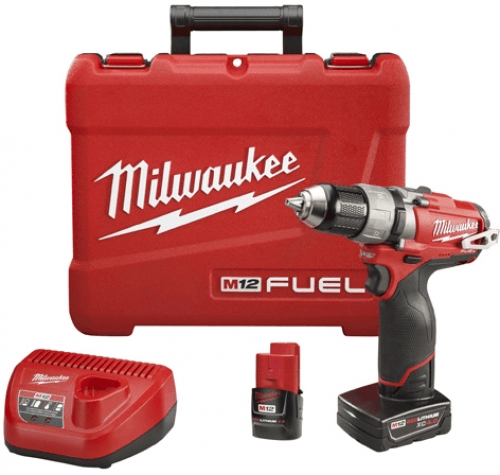

| Included Accessories | 2403-22 (Belt clip, Carrying case, Extra 4.0 Extended Capacity battery). 2403-20 (Bare tool only) |
| Available colors | Red/Black |
| Warranty | 5 years |
| Handle Type | Contoured |
| Special | Built-in battery fuel gauge |
| UPC code | 45242268276 |
| Indicator lights |  |
| Indicator lights | |
| Warranty | 5 years |
| Special | Built-in battery fuel gauge |
| UPC code | 45242268276 |
| Model Variants | 2403-20 |
| Main category | Cordless drill |
| Release year | 2013 |
| Release month | 6 |
| Release day | 3 |
| Handle Type | Contoured |
Description:
Sporting a 1/2-inch all-metal chuck, an integrated battery fuel gauge, a hard storage case, and an additional 4000mAh battery pack (not included in the 2403-20 bundle), the Milwaukee 2403-22 drill driver gets itself right into the heavyweight division with its 152-ounce weight.
Also known as Milwaukee 2403-20, Milwaukee M12 Fuel 2403-22.
