Full Husqvarna R120S 42-inch Mower Specs
12
V
Battery
42
-inch
cutting width
| Under The Hood | |
|---|---|
| Engine Make | Briggs and Stratton |
| Engine Model | Endurance Series |
| Engine ignition | Switch |
| Engine cylinders | 1 |
| Cylinder displacement | 500 cc |
| Engine cooling | Air |
| Engine fuel | Gasoline |
| Generator amps | 3 |
| Engine air filter type | Paper filter |
| Fuel Tank Capacity (quarts) | 7 |
| Fuel Tank Capacity (litres) | 7 |
| Engine lubrication type | Full pressure |
| Oli filter |  |
| Battery | Lead-acid |
| Battery voltage | 12 V |
| Engine power Kw | 26.1 |
| Horsepower | 19.5 HP |
| Mowing Features | |
| Cutting width (inches) | 42 |
| Cutting deck type | Stamped |
| Cutting methods | Side discharge (optional mulch kit) |
| Cutting deck material | Steel |
| Anti-scalp wheels | 2 |
| Deck lifting system | Lift lever (hand-operated) |
| Powder-coated cutting deck | |
| Blade engagement | Automatic |
| Blades | 2 |
| Mower Cut Height (inches) | 3.75 |
| Mower Cut Height Min (inches) | 1.5 |
| Cut Height Increments count | 5 |
| Cutting height adjustment | Lever-operated |
| Lift system | Hand-operated (lever) |
| Mower Deck Material | Steel |
| Mower Drive System | Belt |
| Mower Wheels | 4 |
| Mower Wheel Adjustment | Manual |
| Seat Details | |
| Seat material | Vinyl |
| Seat spring | |
| Seat Suspension | |
| Drive Details | |
| Steering type | Standard |
| Drive system type | Pedal-operated |
| Wheel type | Pneumatic |
| Front Wheel Diameter | 16 x 6.5 inches |
| Rear Wheel Diameter | 16 x 6.5 inches |
| Transmission Type | Hydrostatic |
| Transmission manufacturer | Tuff Torq |
| Transmission control | Foot-pedal |
| Transmission cooling | Fan-cooled |
| Other Specs & Features | |
| Country of assembly | USA |
| UPC code | 085388583994 |
| Receiver Hitch | |
| Starter type | Key start (electric) |
| Fuel Tank Capacity | 1.9 gal. (Or 7L / 7 qts.) |
| Manufacture product ID | R120S |
| AlphaMetrics | |
| Release year | 2012 |
| Release month | 11 |
| Width (inches) | 50 |
| Height (inches) | 42 |
| Width (mm) | 1270 |
| Height (mm) | 1066.8 |
| General Specs | |
| Weight | 496.03lbs. |
| Weight (kilograms) | 225 |
| Warranty | 3 years |
Description:

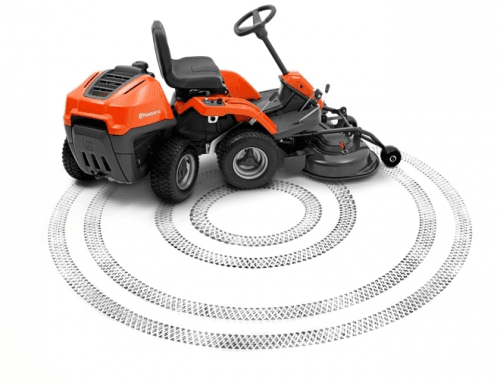

One of Husqvarna's models with the rear tire swing-in (articulated steering) system, the R120S has a 42-inch cutting width and runs on a 19.5hp engine. It also sports a cutting deck that is installed in front, supported by two anti-scalp wheels. Additionally, it has a top speed of 6.8mph, and five cutting height adjustments from 1.5 to 3.75 inches..
Also known as Husqvarna Articulated 42-inch, Husqvarna R-120S.
