Complete Ariens 920022 Snow Blower Specs
24
-inch
intake width
Are You Sure It Is Your Best Choice? Check These:
| Basics | |
|---|---|
| Main sub-category | 2-stage snow blower |
| CARB compliant |  |
| Intake Specs | |
| Intake dimensions | 24-inch wide x 20-inch deep (height) |
| Blower type | 2-stage (Dual-stage) |
| Auger Diameter | 11" |
| Auger material | Serrated steel |
| Auger Gear Case Material | Cast Iron |
| Impeller Diameter | 12" |
| Impeller Blades | 3 |
| Skid Shoes | Steel Reversible |
| Drift cutters | Sold Seperately |
| Scraper type | Steel Adjustable |
| Performance | |
| Throwing Distance | 40 feet |
| Engine Make | Ariens |
| Engine Model | Ariens AX |
| Engine Type | OHV |
| Engine ignition | Electric Or Recoil |
| Cylinder displacement | 208 cc |
| Engine fuel | Gasoline |
| Fuel Tank Capacity | 0.71 gal. (Or 2.7L / 3 qts.) |
| Gross Torque | 9.5 foot-lbs |
| Starter type | 120V Electric Start or Recoil |
| Fuel Cap | |
| Chute / Deflector | |
| Chute Deflector Direction Change | Remote |
| Chute Rotation | 205 ° |
| Propulsion & Control | |
| Forward Speeds | 6 |
| Reverse Speeds | 2 |
| Interlock system | One-hand |
| Drive system type | Disc-O-Matic |
| Tread | Directional Snow Track |
| Hand Warmers | Optional |
| Clear Out Stick | |
| Drift Cutters | Sold Seperately |
| Headlight | Halogen |
| Other Specs & Features | |
| Manufacture product ID | 920022 |
| Warranty | 3 years |
| Commercial warranty | 0.25 years |
| Release year | 2014 |
| Release month | 4 |
| Physical Specs | |
| Weight | 249lbs. |
Description:

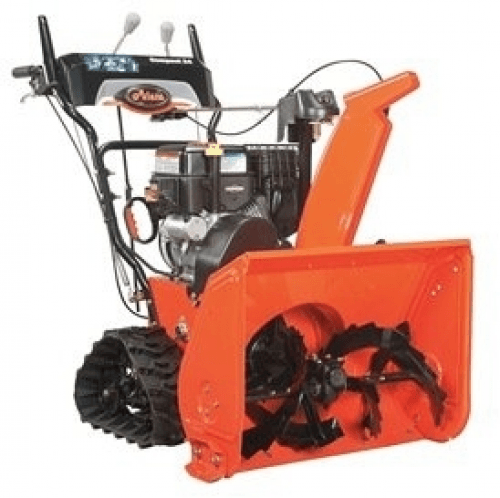

Self-propelled 24-inch track snow blower with a throwing distance of 40 feet sporting a 208cc engine with a gross torque of 9.5.
Also known as: Ariens ST24LET, Ariens Compact Track 24-Inch.
