53 Important Ariens Compact Track 24 920028 Snow Blower Specs
24
-inch
intake width
Our Score: 92%
Are You Sure It Is Your Best Choice? Check These:
| Basics | |
|---|---|
| Main sub-category | 2-stage snow blower |
| Intake Specs | |
| Intake dimensions | 24-inch wide x 20-inch deep (height) |
| Blower type | 2-stage |
| Auger Style | Serrated |
| Auger Diameter | 11" |
| Auger material | Steel |
| Auger Gear Case Material | Cast iron |
| Impeller Diameter | 12" |
| Impeller Blades | 3 |
| Impeller material | Steel |
| Skid Shoes | Steel, Reversible |
| Drift cutters | Optional |
| Scraper type | Steel, Adjustable |
| Performance | |
| Throwing Distance | 40 feet (3 to 40 feet) |
| Capacity per minute | 1967 lbs/minute |
| Capacity per minute (kg) | 892.08 |
| Capacity per minute (tons) | 0.98 |
| Capacity per hour (lbs) | 118000 |
| Capacity per hour (kg) | 53418.0 |
| Capacity per hour (tons) | 59 |
| Engine Make | Ariens AX |
| Cylinder displacement | 223 cc |
| Engine fuel | Gasoline |
| Starter type | Electric/Recoil |
| Chute / Deflector | |
| Chute Deflector Direction Change | Remote, 2.5x Quick Turn |
| Chute Rotation | 205 ° |
| Propulsion & Control | |
| Forward Speeds | 6 |
| Reverse Speeds | 2 |
| Interlock system | One-hand |
| Drive system type | Disc-O-Matic |
| Wheel type | Wide Track |
| Tire Size | 5.5 inches |
| Tread | Directional Snow Tread |
| Handle Type | Folding, Interlocking |
| Hand Warmers |  (optional) |
| Drift Cutters | Optional |
| Headlight | Halogen |
| Other Specs & Features | |
| Optional Accessories | Drift cutter kit, Snow cab, Non-abrasive skid shoes kit, Heated handlebars, Protective floor mat (30 x 36 inches), Sno-Thro Cover |
| Special | Solid locked steering |
| Manufacture product ID | 920028 |
| Warranty | 3 years (5 years for gear case) |
| Commercial warranty | 0.25 years (1 year for gear case) |
| Release year | 2019 |
| Release month | 08 |
| Release quarter | 03 |
| SERIES | Compact |
| Physical Specs | |
| Weight | 222lbs. |
| Width (inches) | 26.4 |
| Height (inches) | 43.4 |
| Depth (inches) | 53.3 |
| Width (mm) | 670.6 |
| Height (mm) | 1102.4 |
| Depth (mm) | 1353.8 |
Description:

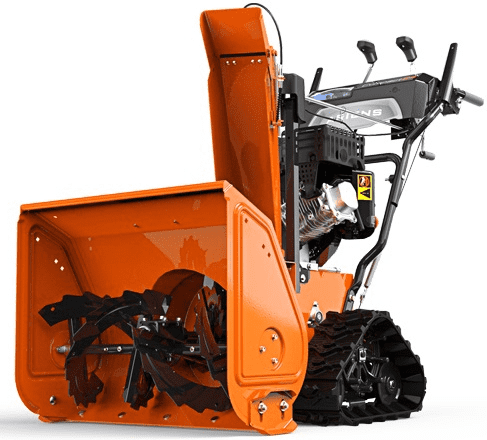

Also called Ariens 920028, Ariens 24-inch 2-stage Track Snow Blower.
