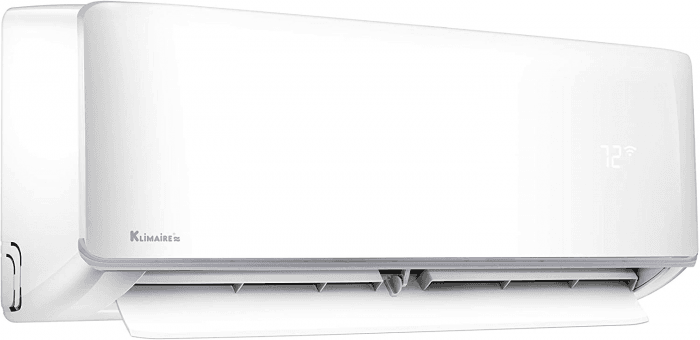

Complete Klimaire KSIV024-H219-S(W) A/C Specs
24000
BTU
cooling
24000
BTU
heating
34
db
Min. Noise
Our Score: 88%
| Release month | 06 |
| Release quarter | 02 |
| Basics | |
|---|---|
| Main category | Split air conditioner |
| SERIES | KSIV |
| Weight | 30.2lbs. (105.16 lbs for outdoor unit) |
| Weight lbs with package | 39.68 (112.22 lbs for outdoor unit) |
| Height (inches) | 13.19 (27.64 inches for outdoor unit) |
| Width x Height | 42.52-inch wide x 13.19 (27.64 inches for outdoor unit)-inch high (33.27 inches for outdoor unit) |
| Depth | 8.9 inches (14.29 inches for outdoor unit) |
| Width (mm) | 1080 |
| Height (mm) | 335 |
| Depth (mm) | 226.1 |
| Cooling system | DC inverter with heat pump |
| Warranty | 5 years |
| Energy Efficiency | |
| Energy efficiency ratio (EER) | 9.5 |
| Seasonal Energy efficiency ratio (SEER) | 17 |
| Coefficient of Performance (CoP) | 3.2 |
| Heating seasonal performance factor (HSPF) | 9.5 |
| Refrigerant charge (oz) | 62.79 (with 25-feet pre-charge and 0.322 oz per additional feet) |
| Dehumidifier Specs | |
| Lowest operation temperature (F) | 62 °F (32F for heating -- 5F for outdoor cooling and heating) |
| Highest operation temperature (F) | 90 °F (84F for heating -- 122F for outdoor cooling, 86F for outdoor heating) |
| Performance | |
| Cool BTU rating | 24000 BTU |
| Compressor features | Inbuilt base pan, Compressor heater, Anti-corrosive Golden Fin, 7715W capacity, 2085W input, 9.45A RLA |
| Heat BTU rating | 24000 |
| Compressor type | Rotary |
| Estimated cool area | 1500 Square feet. |
| Air flow | 706CFM (19.99 cubic metre/min.) (1823 CFM outdoor air flow) |
| Amps | 11 (9.6A for heating) |
| Voltage | 230 (208 to 230V, at 60Hz and 1Ph) |
| Watts | 2500 W (2200W for heating) |
| Max. motor RPM | 1100 RPM (800 RPM for outdoor motor) |
| Min. motor RPM | 750 RPM (650 RPM for outdoor motor) |
| Min. noise level | 34dBA |
| Max. noise level | 48dBA |
| Min. noise level (outdoors) | 58dBA |
| Convenience | |
| Remote control |  (with Follow-Me function) |
| Auto restart | |
| Other Specs & Features | |
| Certifications | AHRI |
| Preset programs | Auto-Clean (to prevent mildew buildup), Self-cleaning, Sleep Mode, Turbo |
| Release year | 2019 |
| Refrigerant | R410A |

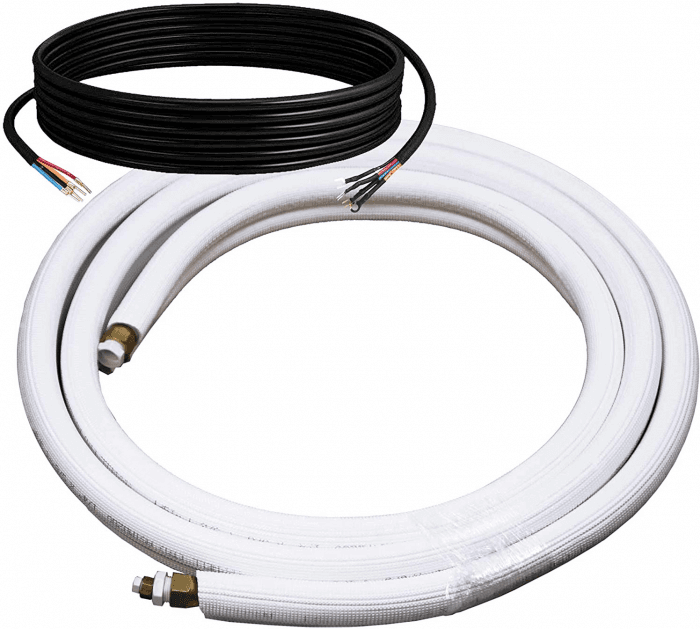

| Special Included Accessories | 15-ft installation kit with interconnecting cables (16AWG*4 wiring) |
| Available colors | White |
| Display Type | Body-integrated White LED |
| Manufacture product ID | KSIV024-H219-S(W) |
Description:
Also known as Klimaire 24000 BTU Mini-Split Air Conditioner with Heat, Klimaire 24000 BTU Ductless AC with Heat.
