Complete Perfect Aire 3PATWH12002 A/C Specs (USA Version)
12000
BTU
cooling
10600
BTU
heating
57
db
Min. Noise
Our Score: 74%
| Release month | 03 |
| Release quarter | 01 |
| Basics | |
|---|---|
| Main category | Wall air conditioner |
| Weight | 78lbs. |
| Weight lbs with package | 89 |
| Height (inches) | 14.5 |
| Width x Height | 24.25-inch wide x 14.5-inch high |
| Depth | 20.5 inches |
| Width (mm) | 616 |
| Height (mm) | 368.3 |
| Depth (mm) | 520.7 |
| Cooling system | Compressor with electric heater |
| Warranty | 1 year |
| Energy Efficiency | |
| ENERGY STAR annual cost | 114 |
| Energy efficiency ratio (EER) | 9.5 |
| Electric safety certification | CUL (US) |
| Energy saver |  |
| Functions | |
| On-off timer | 24 -hour |
| Performance | |
| Cool BTU rating | 12000 BTU (They mention 12000/11700 BTU) |
| Heat BTU rating | 10600 (They mention 10600/8600 BTU) |
| Maximum temperature (C) | 30 |
| Minimum temperature (C) | 17 |
| Estimated cool area | 450 Square feet. (450 to 550 sq. ft.) |
| Cooling fan speeds | 3 (1 speed for heating) |
| Air fan speeds | 3 |
| Minimum temperature | 62 °F (17°C) |
| Maximum temperature | 86 °F (30°C) |
| Amps | 5.9 (They provide 5.5/5.9A for cooling and 15/13.5A for heating) |
| Voltage | 230 (20 AMP outlet) |
| Watts | 1263 W (They provide 1263/1232W for cooling and 3450/2821W for heating) |
| Min. noise level | 57dB |
| Max. noise level | 61dB (61dB on High, 59dB on Med, 57dB on Low) |
| Convenience | |

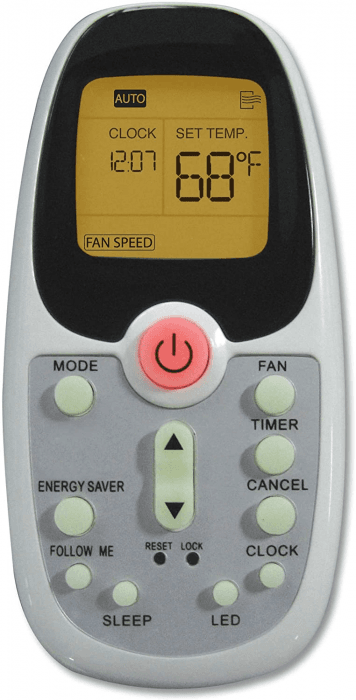

| Remote control | (with Follow Me thermostat function) |
| Control Location | Front |
| Auto restart | |
| Other Specs & Features | |
| Button type | Electronic controls |
| Certifications | Prop 65 |
| Indicator lights | (Check Filter reminder) |
| Optional Accessories | Standard wall sleeves |
| Preset programs | Auto, Cool/Heat, Dry, Energy Saver, Sleep |
| Release year | 2020 |
| Air filter details | Slide-out access |
| Refrigerant | R410A |
| Special Included Accessories | Interior trim kit |
| Available colors | White |
| Display Type | Green LED |
| Manufacture product ID | 3PATWH12002 |
| UPC code | 842149024185 |
Description:
Also known as: Perfect Aire 12000 BTU Through-the-Wall Air Conditioner with Heat.
