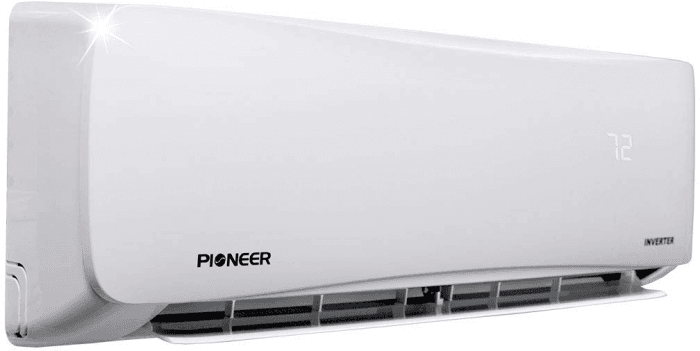

47 Must-know Pioneer WYS009AMFI17RL A/C Specs (USA Version)
9000
BTU
cooling
9500
BTU
heating
24.5
db
Min. Noise
Our Score: 88%
| Release month | 06 |
| Release quarter | 02 |
| Basics | |
|---|---|
| Main category | Energy-efficient air conditioner |
| SERIES | WYS |
| Number of zones | 1 |
| Weight (kilograms) | 7.5 (indoor component) |
| Weight | 16.5lbs. |
| Weight lbs with package | 120 |
| Height (inches) | 11.5 (22, outdoor unit) |
| Width x Height | 28.5-inch wide x 11.5 (22, outdoor unit)-inch of height (30.5, outdoor unit) |
| Depth | 7.5 inches (12, outdoor unit) |
| Width (mm) | 723.9 |
| Height (mm) | 292.1 |
| Depth (mm) | 190.5 |
| Cooling system | Inverter compressor, Heat pump |
| Warranty | 2 years (for parts, 5 for compressor) |
| Energy Efficiency | |
| Energy efficiency ratio (EER) | 11.5 |
| Performance Certification | UL-1995, AHRI |
| Seasonal Energy efficiency ratio (SEER) | 19.5 (18 to 19.5) |
| Heating seasonal performance factor (HSPF) | 10 (9.5 to 10) |
| Functions | |
| Air deflection | Auto-swing louvers |
| Performance | |
| Cool BTU rating | 9000 BTU |
| Heat BTU rating | 9500 |
| Compressor type | Rotary |
| Maximum temperature (C) | 32 |
| Minimum temperature (C) | 17 |
| Estimated cool area | 350 Square feet. (200 to 350) |
| Minimum temperature | 62 °F (17°C) (46 low-heat setting) |
| Maximum temperature | 90 °F (32°C) |
| Air flow | 247CFM (6.99 cubic metre/min.) (1060 outdoor) |
| Amps | 6.8 (8 for heating) |
| Voltage | 230 (or 120, depending on variant) |
| Watts | 782 W (925 for heating) |
| Max. motor RPM | 1050 RPM |
| Min. motor RPM | 650 RPM |
| Min. noise level | 24.5 |
| Max. noise level | 39 |
| Convenience | |

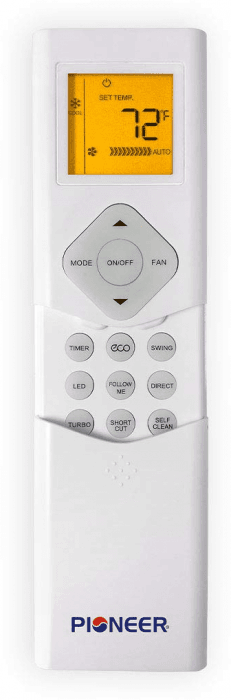

| Remote control |  (Infrared, With orange LCD backlit display) |
| Other Specs & Features | |
| Optional Accessories | Outdoor component bracket, PVC line cover kit, 5/16-inch to 1/4-inch SAE adapter |
| Wi-Fi | |
| Release year | 2016 |
| Air filter details | Permanent, Washable |
| Refrigerant | R410a |
| Special Included Accessories | 16-feet Installation kit (Pair of insulated copper tubes with connections, signal wiring, wall sleeve liner and cap, putty, wrapping tape, drain line extension) |
| Available colors | White |
| Display Type | LED |
| Manufacture product ID | WYS009AMFI17RL |
Description:
Also known as: Pioneer 9000 BTU Split Air Conditioner, Pioneer 9000 BTU Ductless Air Conditioner.
