Full Senville SENL/09CD A/C Specs (USA Version)
9000
BTU
cooling
10000
BTU
heating
25
db
Min. Noise
Our Score: 92%
| Release month | 07 |
| Release quarter | 03 |
| Basics | |
|---|---|
| Main category | Energy-efficient air conditioner |
| Number of zones | 1 |
| Weight (kilograms) | 7.8 (30.3 for outdoor component) |
| Weight | 17.2lbs. (66.8 for outdoor component) |
| Weight lbs with package | 22.7 (71.87 for outdoor component) |
| Height (inches) | 11.42 (21.85, outdoor component) |
| Width x Height | 28.43-inch wide x 11.42 (21.85, outdoor component)-inch of height (30.31, outdoor component) |
| Depth | 7.36 inches (11.81, outdoor component) |
| Width (mm) | 722 (770, outdoor component) |
| Height (mm) | 290 (555, outdoor component) |
| Depth (mm) | 187 (300, outdoor component) |
| Cooling system | Inverter compressor |
| Warranty | 1 year |
| Energy Efficiency | |
| Energy efficiency ratio (EER) | 11.5 |
| Seasonal Energy efficiency ratio (SEER) | 19 |
| Heating seasonal performance factor (HSPF) | 10 (HSPF4, 7.8 HSPF5) |
| Refrigerant charge (oz) | 30 |
| Functions | |
| Air deflection | Multi-directional air vents |
| Performance | |
| Cool BTU rating | 9000 BTU |
| Heat BTU rating | 10000 |
| Compressor type | Rotary (ZKFP-20-8-113 model) |
| Maximum temperature (C) | 32 (30 for heating) |
| Minimum temperature (C) | 17 (0 for heating) |
| Estimated cool area | 189 Square feet. (129 to 189) |
| Minimum temperature | 62 °F (17 (0 for heating)°C) (32 for heating) |
| Maximum temperature | 90 °F (32 (30 for heating)°C) (86 for heating) |
| Air flow | 247CFM (6.99 cubic metre/min.) (on High, 182 on Med, 129 on Low) |
| Amps | 6.8 (8.1 for heating) |
| Voltage | 115 |
| Watts | 782 W (925 for heating) |
| Max. motor RPM | 1050 RPM (on High, 850 on Med, 600 on Low) |
| Min. noise level | 25 |
| Max. noise level | 38 (52 for outdoor component) |
| Convenience | |

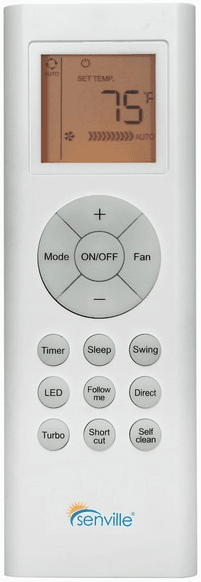

| Remote control |  |
| Other Specs & Features | |
| Certifications | ETL, AHRI, EnergyGuide |
| Release year | 2015 |
| Refrigerant | R410A |
| Special Included Accessories | Installation kit with 16-ft copper line set (25- and 50-ft kits also offered), Wiring harness |
| Available colors | White |
| Special | 82-feet max refrigerant pipe length, Bucket-free design |
| Manufacture product ID | SENL-09CD |
| UPC code | 893088008019 |
Description:
Also known as: Senville 9000 BTU Split Air Conditioner with Heat, Senville 9000 BTU Ductless Air Conditioner with Heat.
