Full Senville SENL/24CD A/C Specs (USA Version)
24000
BTU
cooling
24000
BTU
heating
34
db
Min. Noise
Our Score: 94%
| Release month | 06 |
| Release quarter | 02 |
| Basics | |
|---|---|
| SERIES | SENL |
| Number of zones | 1 |
| Weight (kilograms) | 13.7 (47.7 for outdoor component) |
| Weight | 30.2lbs. (105.16 for outdoor component) |
| Weight lbs with package | 39.68 (112.22 for outdoor component) |
| Height (inches) | 13.19 |
| Width x Height | 42.52-inch wide x 13.19-inch of height |
| Depth | 8.9 inches |
| Width (mm) | 1080 |
| Height (mm) | 335 |
| Depth (mm) | 226 |
| Cooling system | Inverter compressor with heat pump |
| Warranty | 5 years |
| Energy Efficiency | |
| Energy efficiency ratio (EER) | 9.5 |
| Seasonal Energy efficiency ratio (SEER) | 17 |
| Heating seasonal performance factor (HSPF) | 9.5 (HSPF4, 8 HSPF5) |
| Refrigerant charge (oz) | 62.79 |
| Functions | |
| Air deflection | Multi-directional air vents |
| Performance | |
| Cool BTU rating | 24000 BTU (6850-24500) |
| Heat BTU rating | 24000 (7200-25000) |
| Compressor type | Rotary (ZKFP-58-8-1 model) |
| Maximum temperature (C) | 32 (30 for heating) |
| Minimum temperature (C) | 17 (0 for heating) |
| Estimated cool area | 484 Square feet. (330 to 484) |
| Minimum temperature | 62 °F (17 (0 for heating)°C) (32 for heating) |
| Maximum temperature | 90 °F (32 (30 for heating)°C) (86 for heating) |
| Air flow | 706CFM (19.99 cubic metre/min.) (on High, 588 on Med, 450 on Low) |
| Amps | 11 (9.6 for heating) |
| Voltage | 230 |
| Watts | 2500 W (2200 for heating) |
| Max. motor RPM | 1100 RPM (on High, 900 on Med, 750 on Low) |
| Min. noise level | 34 |
| Max. noise level | 48 (58 for outdoor component) |
| Convenience | |

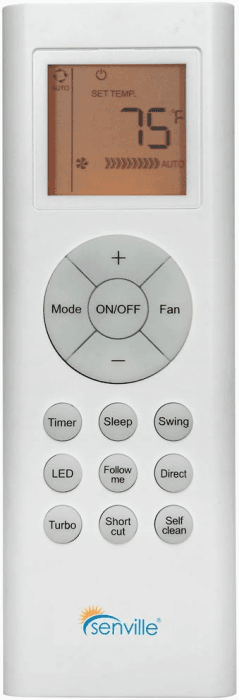

| Remote control |  |
| Other Specs & Features | |
| Certifications | ETL, AHRI, EnergyGuide |
| Thermostat | |
| Release year | 2015 |
| Refrigerant | R410A/1780 |
| Special Included Accessories | 16-feet installation copper line set (25- and 50-feet kits are also offered) |
| Available colors | White |

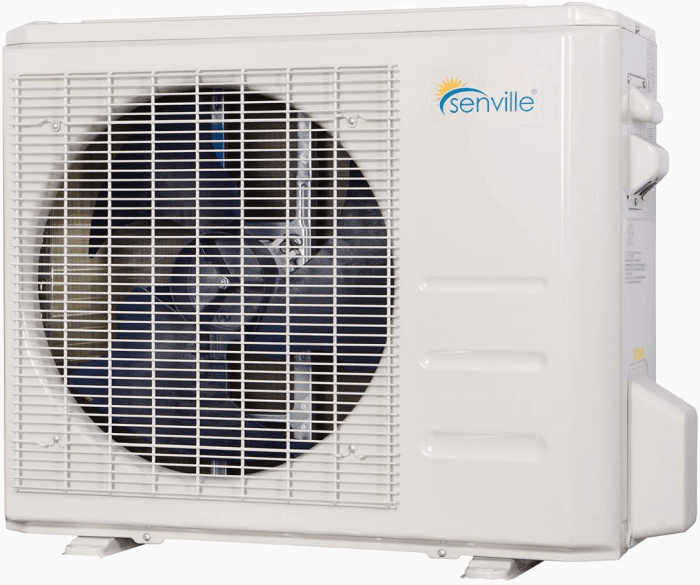

| Special | 1823 CFM air flow for outdoor component, 33.27 x 14.29 x 27.64 inches compressor dimensions, 37.3-ohm winding resistance, Bucket-free design |
| Manufacture product ID | SENL-24CD/X |
| UPC code | 893088008040 |
Description:
Also known as Senville 24000 BTU Split AC with Heat, Senville 24000 BTU Ductless Air Conditioner with Heat.
